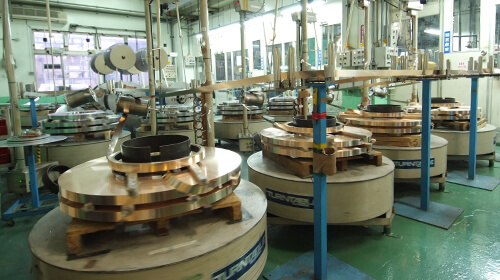

| Shape | Reel-like product (Width: 15 to 65 mm, Thickness: 0.15 to 0.5 mm)※ This number changes depending on the material and product shape. |
|---|---|
| Material | Fe material (42 material, etc.), Cu material |
| Ag plating | Partially Ag plating (base plating = Cu), whole surface Ag plating (base plating = Cu, Ni) |
|---|---|
| Tin plating | Entire surface Sn plating (Base plating = Cu, Ni), Partial Sn plating (Base plating = Ni, Cu) |
| Cu plating | Full Cu plating |
| Ni plating | Full surface Ni plating |
| Shape | Frame-like products (width: 15 to 65 mm, thickness: 0.15 to 0.5 mm) * These number changes depending on the material and product shape |
|---|---|
| Material | Fe material (SUS material, 42 material, etc.), Cu material |
| Ag Plating | Spot Ag Plating (Base Plating = Cu) |
|---|---|
| Au plating | Spot Au plating |
| Shape | Shape to fit into container, size not to pass through gap※ Except for products that are extremely deformed |
|---|---|
| Material | Material Fe material (SUS material, 42 material, etc.), Cu material |
| Ag plating | Full surface Ag plating (Base plating = Cu) |
|---|---|
| Au plating | Full surface Au plating (Base plating = Ni) |
| Sn plating | Entire surface Sn plating (Base plating = Ni, Cu) |

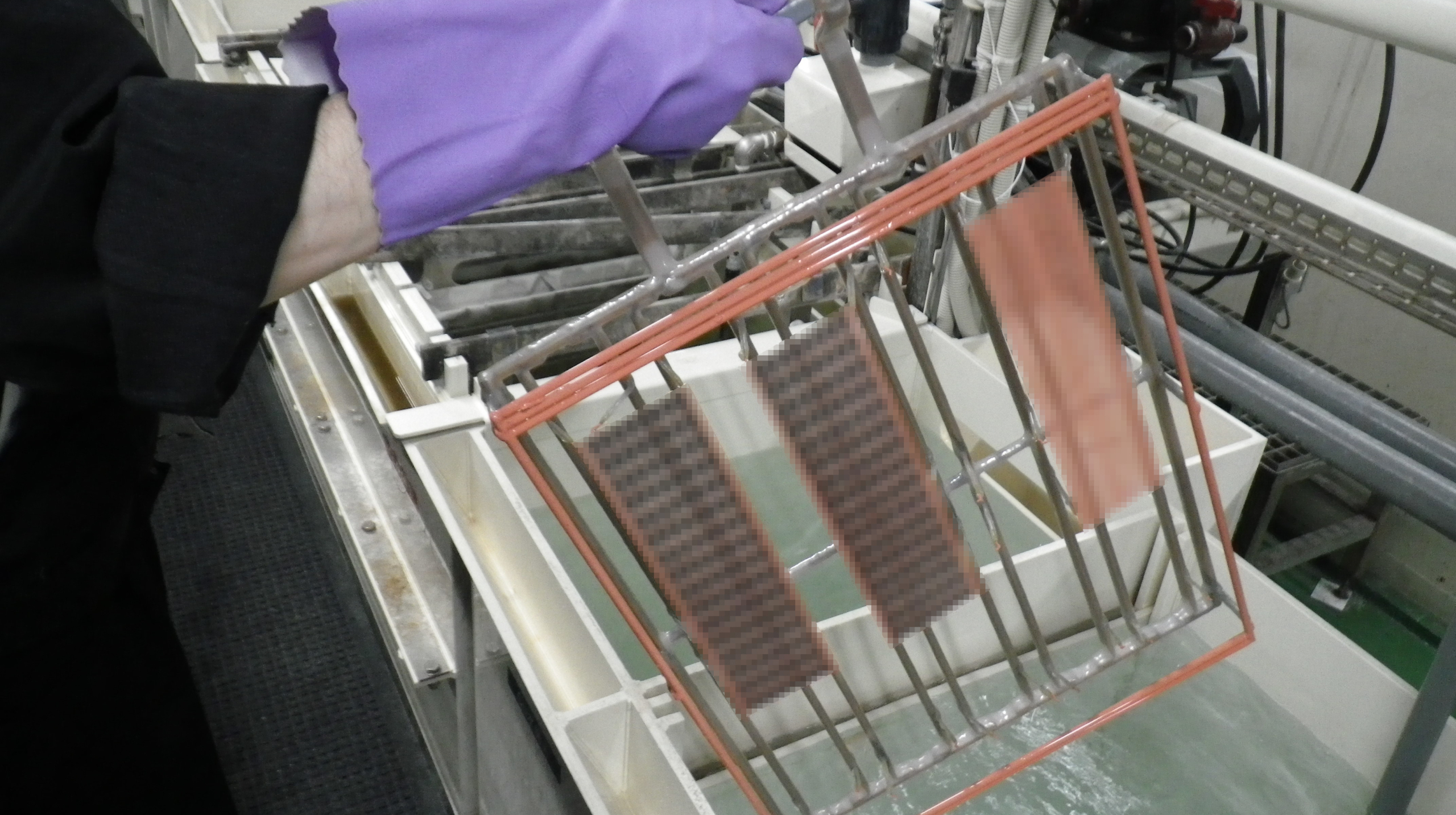

| Shape | Individual pieces, frame-shaped products (max. 380 × 480 mm) |
|---|---|
| Material | Fe materials (such as SUS and 42 alloy), Cu materials |
| Au Plating | Full Au plating (hard, soft) |
|---|---|
| Ag Plating | Full Ag plating (matte, semi-bright) |
| Cu Plating | Full Cu plating |
| Ni Plating | Full Ni plating (matte, semi-bright, bright) |
| Sn Plating | Full Sn plating |
| Manufacturer / Model | Hitachi High-Tech Analysis Corporation FT150h |
|---|---|
| Application | A general-purpose film thickness gauge capable of measuring the thickness and composition of multilayer plating and alloy films with high precision.
Supports plating thickness measurement for multilayer films of three or more layers and for microscopic areas. |
| Manufacturer / Model | Hitachi High-Tech Analysis Corporation FT100A |
|---|---|
| Application | A general-purpose film thickness gauge capable of measuring the thickness and composition of multilayer plating and alloy films with high precision. Supports plating thickness measurement for films of up to two layers. |
| Manufacturer / Model | Hitachi High-Tech Analysis Corporation EA1400 |
|---|---|
| Application | An analyzer capable of measuring trace elements contained in samples, including RoHS substances. Enables highly accurate analysis for a wide range of applications, such as elemental identification of foreign contaminants. |

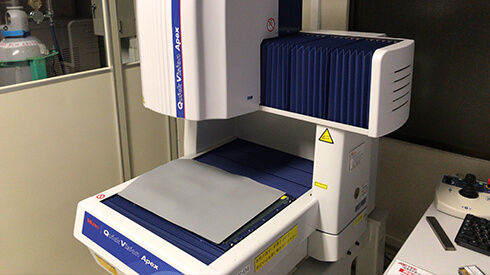

| Manufacturer / Model | Mitutoyo Corporation QV-X404T1C-E |
|---|---|
| Application | A system capable of non-contact 3D shape measurement over a wide range of 400 × 400 × 250 mm.
Also supports dimensional measurement of complex-shaped workpieces with high repeatability accuracy. |
| Manufacturer / Model | KEYENCE Corporation IM-7000 |
|---|---|
| Application | An image dimension measuring system capable of simultaneously measuring multiple dimensions without contact. |
| Manufacturer / Model | KEYENCE Corporation HM-1200 |
|---|---|
| Application | A height and flatness measuring system that can quantify surface height distribution and flatness without contact. |
| Manufacturer / Model | Nippon Denshoku Industries Co., Ltd. VSS-7700 |
|---|---|
| Application | A micro area spectrophotometric colorimeter capable of highly accurate evaluation of spectral reflectance and color difference over a wide range.
Also supports measurement of glossiness and spectral transmittance on metal-plated surfaces. |
| Manufacturer / Model | Nikon Corporation MU-501U |
|---|---|
| Application | Enables contact measurement of thickness, step height, and similar features of compact precision instruments and electronic components. |
